Low Carbon Steel Bundy Tubes 4.76mm X 0.71 mm No Coated bundy tube

Low Carbon Steel Bundy Tubes 4.76mm X 0.71 mm No Coated

low carbon steel strip
standard: GB/T 24187-2009
features: soft and easy to bend
outer diameter:4.76mm


1. Materials:low carbon steel strip
2. Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3. outer diameter:4.76mm
4. wall thickness: 0.71mm
5. standard: GB/T 24187-2009
6. certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System
7. surface treatment: no coated
8. Features:soft and easy to bend
9. tensile strength: more than 290 Mpa
10. yield strength:more than 180 Mpa
11. elongation:more than 25%
12. place of origin: changzhou city, jiangsu province, China.
13. port of loading:shanghai, China;
14. package:plastic cloth with coils, wooden boxes, iron pallets etc
15. delivery:as contract
16. supply ability:40000 ton per year
17. brand:WUSHUN

Applications:

Bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip

Specifications:

Competitive Advantage:
normally used on condenser and evaporator in refrigerator etc ,mainly material is steel ,than coating surface or plain .cost is low ,quality is good and competitive price ,according to country standard .

double wall bundy tubes

wire tube condensers

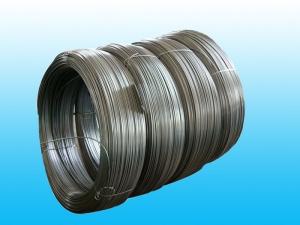

Low Carbon Steel Bundy Tubes 4.76mm X 0.71 mm No Coated bundy tube Images
